Features and benefits
  1. Ease of Use
    • Alien Reader Protocol or LLRP
    • Smart reader/autonomous mode
    • Alien Reader Control Architecture and Ruby

  2. Cost Savings
    • Alien Reader Protocol
    • Smart reader/autonomous mode
    • Best-in-class sensitivity/selectivity

  3. Industry Leading Read Capability
    • Best-in-class sensitivity/selectivity
    • Premier industry read rates
    • Built for challenging RF environment

  4. Industry Leading Robustness, Intelligence and Security
    • Dynamic Authentication™
  5. Leading reader sensitivity/selectivity
  6. Highest build quality
  7. Optically isolated I/O’s

  • Global EPC Gen 2 platform
  • Automatic inventory optimization
  • Feature-rich Alien Reader Protocol
  • Dynamic Authentication of Higgs ICs
  • Exceptional sensitivity and performance
  • Automode, with on-board state machine
  • High read rates for demanding applications
  • Enhanced noise rejection for reliable data capture
  • RSSI & speed filters
  • Easy RFID software integration
  • Easily configurable and upgradable
  • Industrial, installation-friendly I/O connector
  • Antenna reflection cancellation optimization
  • Supports extended / custom Higgs-3™ IC features
  • Auto “Seek” function for low duty cycle applications
  • RoHS EU 2002/95/EC compliant

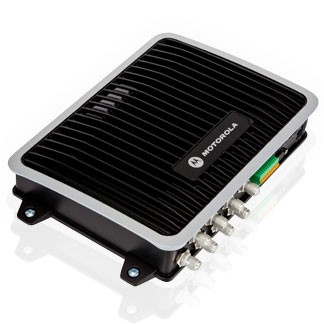

Motorola FX9500 FIXED RFID Reader

Features and benefits
  • High-performance RFID reader: PXA270@624 MHz processor, 128Mb/128Mb memory
    Ideal for high-volume, high-density, high-throughput applications, RF-challenging environments and on RF-challenging materials such as those with a high metal of liquid content; can accommodate growing needs to future-proof your investment.

  • Rugged design: IP53 sealing, diecast housing
    IP53 sealing, die cast housing; maximizes uptime even in the toughest warehouse or production environments.

  • Application flexibility and lower deployment costs
    4-port and 8-port reader configurations; provides greater application flexibility and lets you cover more portals with fewer readers.

  • Small footprint
    All cabling and input/output ports are on one side, resulting in a compact size that simplifies and reduces the cost of deployment and management.

  1. Connectivity
    • External interfaces: RS232 Serial Console – DB9, USB Client – USB Type B
    • Power supply: +24v Vdc
    • Network connectivity: 10/100 BaseT Ethernet – RJ45

  2. OS and Firmware Management
    • Memory: Flash 128 MB; DRAM 128 MB
    • IP addressing: Static and dynamic
    • Firmware upgrade: Web-based and remote firmware upgrade capabilities

  3. Physical Characteristics
    • Weight: 4.4 lbs ± 0.1 lbs (2.13 kg ± 0.05 kg)
    • Dimensions (HxWxD): 10.75 in. L x 7.25 in. W x 2.0 in. D (27.3 cm L x 18.4 cm W x 5.0 cm D)
    • Base material: Die-cast aluminum

  4. RFID
    • Power output: +10dBm to +33dBm
    • Frequency: UHF band, 902-928 MHz, 865-868 MHz

  5. User Environment
    • Storage temperature: -40° to +158° F (-40° to +70° C)
    • Operating temperature: -4° to +131° F (-20° to +55° C)
    • Humidity: IEC 60068-30/56 5-95% non-condensing
    • Environmental sealing: IP53


Features and benefits
  1. Ease of Use and Cost Savings
    • Integrated antenna
    • Alien Reader Protocol
    • Smart reader/autonomous mode
    • Alien Reader Control Architecture and Ruby
    • Power-over-Ethernet (PoE)

  2. Industry Leading Intelligence and Security
    • Crisis recovery: LAN and power loss
    • UDP heartbeat
    • Remote firmware management
    • Dynamic Authentication™
  • Simple, low-profile solution for single antenna applications
  • Integrated, high-performance circular antenna — only 9”x 9”
  • POE eliminates cost of AC power drop
  • EPC Gen 2 Dense Reader Interoperable
  • Second antenna port enables 2-antenna applications
  • Manageable and upgradeable


Features and benefits
  1. Ease of Use, Low set-up and low-running cost
    • Four antenna port flexibility
    • Alien Reader Protocol
    • Smart reader/autonomous mode
    • Alien Reader Control Architecture and Ruby
    • Power-over-Ethernet (PoE)
    • Remote firmware management

  2. Robust yet fits narrow vertical locations
    • Robust metal chassis
    • 1¼“ tall
    • All cables on single side

  • Feature-rich Alien Reader Protocol
  • 4 mono-static reader ports
  • POE eliminates cost of AC power drop
  • EPC Gen 2 dense reader interoperable
  • Slim form-factor for installation in height-restricted places
  • Manageable and upgradeable

USB Plus+ RFID Reader

Features and benefits
  • Brand: Intermec
  • Model:IF2
  • Frequency: UHF
  • Style: Fixed
  • Port Capacity: 4 Port
  • Antenna Capacity: 4 Antenna

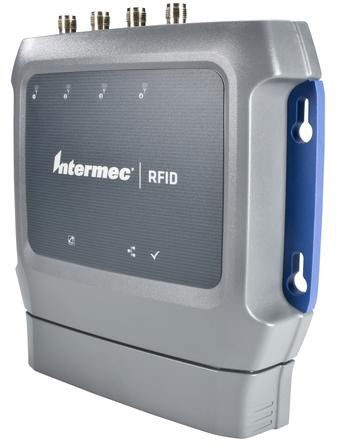

The Intermec IF2 is a compact, cost-effective network reader designed to support diverse RFID applications in both enterprise and industrial environments that require a scalable RFID system with a low cost per read point. The IF2 supports Power over Ethernet, four mono- or bi-static RF ports, built-in powered general purpose input output (GPIO) control, and both standards-based LLRP and Intermec's easy to use Basic Reader Interface (BRI) application interfaces, enabling scalable low-cost deployments for improved return on investment (ROI). The IF2 is packaged in a durable enclosure for nearly any environment and is factory configured to operate in regions across the globe.


Features and benefits
  • Support for EPCglobal Gen 2 (ISO 18000-6C) with Anti-Collision and DRM
  • Internal linear polarized antenna with peak Gain 1 dBi from 860–960 MHz
  • Powered by USB connection to notebook or desktop PC
  • ThingMagic Reader Assistant software and applications development tools
  • Support for full 860 to 960 MHz UHF RFID carrier frequency range to accommodate worldwide regulations
  • Certifiable for operation in countries adopting FCC, ETSI, KCC, TRAI, ACMA, SRRC regulatory specifications (Open (Customizable) 860-960 MHz)
  • Tag Read Rate up to 200 tags/second
  • Tag Read Distance Up to 3 feet (0.91 m)
  • High impact plastic case
  • Dimensions: 97 mm L x 61 mm W x 25 mm H (3.8 in L x 2.4 in W x 1.0 in H)

The USB Plus+ RFID Reader is a low cost platform for developing and deploying interactive read/write applications. Driven by ThingMagic's Mercury 5e-Compact UHF RFID reader module, the USB Plus+ is controlled and powered by a host PC or laptop through a USB interface and is compatible with ThingMagic’s application development tools, permitting rapid creation of RFID solutions. With a software adjustable read distance up to 3 ft (0.91 m), the USB Plus+ supports a variety of applications, including RFID tag commissioning, manufacturing WIP, document tracking, library book check in/out, retail point of sale, event and hospitality services, hospital patient workflows, and more. The high-performance internal antenna of the USB Plus+ is also ideal for commissioning high memory tags and reading small form factor RFID tags more effectively.
