Features：

  Reveal self-confidence：

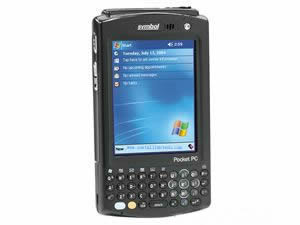

   ·MC50 design makes it more durable than consumer PDA. Each part of MC50 have excellent reliability - from battery contacts to the keyboard to sound components - ensure its performance, high strength far beyond daily use requirement. Whether during the trip, sales sites to visit customers or anytime, MC50 use can make managers, supervisors and sales professionals reveal self-confidence.

   Specifications：



  Physical parameters：

   ·Weight: NAV one-dimensional 182 grams QWERTY keyboard one-dimensional 192 grams
   ·Display: through reflex color tft-lcd 65K, color 240 (wide) x 320 (long) QVGA (size),
   ·Touch screen separation: durable
   ·LED backlighting unit:
   ·The battery: rechargeable lithium batteries, 1560mAh 3.7 V
   ·Backup battery: ni-mh battery recharging (), 15mAh (1.2 V)
   ·Expansion slot: user can operate the SDIO slot (with safety cover)
   ·Notice: vibration and leds
   ·Keyboard: NAV: 4 applications and 5 navigation keys QWERTY keyboard: 37 keys
   ·Audio: speaker, receiver, microphone, headphone jacks, software full-duplex recording and playback support (sound)

  Performance parameters：

   ·Intel: Xscale 520MHz CPU
   ·Operating system: Microsoft Windows Mobile version 2, 2003
   ·64MB memory: RAM / 64MB ROM
   ·The communication interface: rs-five 232, USB1.1

  Use environment：

   ·Working temperature: 0 ° c to 50 ° c
   ·Storage temperature: - 25 ° c to 60 ° c
   ·Humidity (95%) without condensation:
   ·The seismic capability: in 21 degrees conditions, each side can inherit from three feet in height to ceramic tile ground impact
   ·Static release: + / - 8kV air discharge, + / - 4kV direct discharge

  Wireless data and voice communication：

   ·LAN: based on wireless local-area network (WLAN Spectrum24. IEEE 802.11 b standard
   ·Antenna: built-in
   ·Frequency range: depends on the national regions, usually for 2.4-2.5 speed
   ·Output power: 14.5 dBm (standard),
   ·Data rate: 1/2/5. 5/11 Mbps
   ·Working channel: integrated IP voice communication support (P2P) PBX, PTT, FiTM - certified, Wi - IEEE802.11 b straight sequence expansion wireless LAN
   ·Expansion technique: direct sequence

  Data acquisition specifications：

   ·Options: two-dimensional imager, linear CCD camera or CMOS
   ·Vision: horizontal direction: 32.2 °? Vertical direction: 24.5 °
   ·Optical resolution: 64 (H) X 48 pixels (V)
   ·Rotating Angle: 360 °
   ·Tilt environment: from normal ± 60 ° Angle
   ·Allow tilt: from normal ± 50 ° Angle
   ·Before the engine focal: nearly five inches, coke coke nine inches
   ·Focus: 650 ± 5nm
   ·The minimum contrast: 650nm, 25% of the absolute minimum black/light reflection
One-dimensional symbols: UPC symbols: Code128, UCC/EAN 128 - EAN /, 39, RSS, Code, Code 93, Discrete, Interleaved 2 of5 of5, Codabar MSI, 2
   ·MaxiCode PDF417 2d symbols: DataMatrix, QRCode, and
   ·Postal code: U.S.P ostnet, U.S.P lanet UKPostal, Australian, Postal Postal, love and never dull
   ·Image formats: BMP, JPEG, TIFF
   ·Linear CMOS (CSE600)
   ·Perspective: 40 °, ± 2 °
   ·Rotating Angle: from normal ± 20 ° Angle
   ·Tilt Angle: normal ± 50 ° Angle deviation
   ·Allow tilt: from normal ± 30 ° Angle
   ·Minimum 675nm contrast: when MRD 30%
   ·UPC symbols: EAN 128, and Code/UCC/EAN 128-93, Code39, Interleaved 2, Code of five, five, and two of Discrete Codabar
CCD camera
   ·Graph: 1/4 inch, 110 million pixels CCD
   ·Maximum frame rate: 7.5 FPS
   ·The minimum illumination: 2lux 5fps (when)
   ·Output pixel: 1144 (H) X 880 (V),
   ·Output interface: UYVY8 - bit
   ·Lens: f2.8
   ·Trigger switch: trigger switch button

  Peripheral equipment and accessories：

   ·Communication with backup seat: 1 x rechargeable battery (2) and single slot USB, 4 slot Ethernet network or USB
   ·Communication and cable, car battery v1.1: USB cable and power cable/charging
   ·Charger: 4 slot battery chargers (1X 2X), universal charger and (1X and 2X battery capacity adapter)
   ·Vertical accessories: push-in type magnetic lock, general reader cup cable connection cables can converter

 Product specifications：

   ·Electrical safety: UL60950 (UL, CSA C22.2 marking). 60950 (c), marking the UL - EN60950 / IEC 950
   ·Laser security: IEC level 2 / FDA grade II, abide by IEC60825 EN60825 -1 / -1
