Home

 >>

Barcode Scanner

>>

Motorola

 >>

(Symbol) MC1000

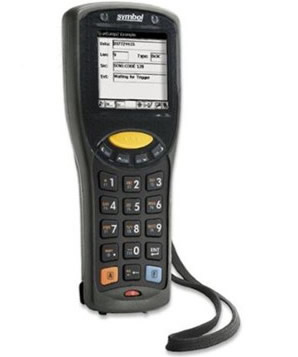

   Motorola(Symbol) MC1000
MC1000，元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，管理系統方案

    The data input and barcode functions of the MC1000 Motorola (Symbol) company is introduced and a durable type mobile data terminals. It is not in light industry, retail, logistics, ware-housing meets your needs and budget to adapt to the working environment. Usable and distribution center. With MC1000 Symbol, you can even more efficient and accurate data collection, will correct products at the right time to correct customers. Based on the standard of open access to the structure, large software developer community, thus for you in mobile computing investment provide protection. Also, but also for future development and lay a solid foundation. You have advanced mobile data acquisition and management solutions can own the change of demand and continuous development.
Over time, your enterprise development needs of the investment in industry with the corresponding development of winning. MC1000 Symbol based on Microsoft Windows CE platforms and build, can provide you with the flexible and based on long-term adaptability. MC1000 Symbol in the rapid development and deployment of applications can help you in a long period of time, he can achieve relatively low cost high value of application, whether you need a Microsoft Windows Enbeddeb development application, or use the rapid application development RAD tool developed new applications, MC1000 are realized, and you don't have restricted to certain special operating system or development tools.

Product parameters 元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案



   MC1000 parameters：

元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案



  Physical parameters：

   ·Size: 6.42 in 254. H * W * in 150 in. D
   ·Weight: 7.23 oz / 205 (including lithium battery)
   ·Display: tft-lcd monochrome 240 * 240 without touching screen
   ·Backlight: electroluminescent (EL) backlight
   ·The battery: 3 AAA batteries, or 1 rechargeable lithium batteries, 1800mAh 3.7 V
   ·Expansion slot: user can access the SD slot (with safety cover)
   ·Notice: scanning and charging LED
   ·Keyboard: 21 keys, digital/letter
   ·Audio: buzzer


元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案

  Performance parameters：

   ·Intel: XScale 321 CPU MHz processor
   ·Operating system: Microsoft Windows CE4.2 Core
   ·Memory: 32MB RAM / 32MB ROM
   ·USB1.1 interface: client, RS - 232

元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案

  Use environment:

   ·Working temperature: 14 ° F - 122 ° F / - 10 ° C to 50 ° C
   ·Storage temperature: - 40 ° F - 158 ° F / - 40 ° C to 70 ° C
   ·Humidity: 0-80% of relative humidity (non-condensable)
   ·Specification: fall four inches / 1.2 meters to the cement ground, 500 times 1.65 feet / 0.5 meters
   ·Sealing specifications: IP54
   ·Static release: air discharge, consumers 10KV ± 8KV ± directly discharge requirements

元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案

  One-dimensional laser scanner：

   ·Interleaved 2 of symbols: 5 (IFT), RSS - 14 / Limited/Expanded, Codabar (NW - 7), ITF, MSI Plessy of 5, 2, IATA Code 39 (standard and all Ⅱ ASC), Code, Code, UPCA 93, UPCE 128, EAN - 13 (WPC), EAN - 8, UCP contains articles/EAN complement, Coupon Code
   ·Scanning switch: roof

元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案

  External equipment and accessories：

   ·Communication seat: single slot USB, RS - 232 charging communication, gongbei with battery, four slot USB charging communication
   ·Communication and cable: USB communication cable, RS0-232 rechargeable battery cables, cable communication printer
   ·Specific for vertical: modems (connected to the single slot with hand), communication seat

元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案

  Application development program：

   ·EmbeddedVisual: c + +, Visual studio. Net2003 4.0 through Deneloper Symbol, the SDK Zone Web site, short MCL. Will is used to apply

元富科技有限公司專業提供條碼打印機，條碼掃描器，標籤，碳帶，管理系統解決方案

  Rules and regulations：

   ·Electrical safety: 60950 fits UL, CSA C22.2 No. 60950, EN 60950 norms
   ·B: CISPR22 scale-up electromagnetic interference, CISPR24, FCC, EN55022, EN55024 15B again
   ·Laser security: 21. CFR1040.10 Ⅱ scale-up 60825, IEC, EN 60825 Class2
