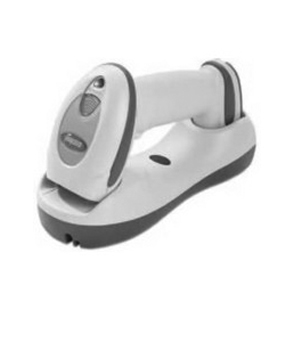

Symbol LS4278 features:

  Integrated bluetooth：
   ·To ensure safety, the wireless data transmission.

  Many line grating scanning mode：
   ·Precise positioning, needn't.

  Remote scanner management (RSM turbulence) ：
   ·From the remote, allow users to upgrade, configuration and found so far.

  Long life and industrial battery contact points：
   ·With reliable performance, and evaluation of 250,000 + times。

  The single board patented design：
   ·The main loopholes, eliminate source, reduces the operation cost.

  Wide scope of work：
   ·In close range, which can be read good quality, also can read the bar code, quality rough reduced to move around the scanner.

  Excellent exercise tolerance features：
   ·Don't need to pause, scanning.

  Strong design ：
   ·From five feet, can withstand 1.5 meters/fall to the cement ground, reduce downtime due to rupture.

  By hosting cable power supply:：
   ·Michael does not use power, simplified installation.

  Plug and play, general cable：
   ·In any computing environment, achieve rapid deployment and diversity.

  More of：
   ·In communications, allow users to use as many as three single seat scanner.

  Batch mode：
   ·The application of design, increase flexibility.

  Vertical or horizontal installation：
   ·To you, the environment.



  Symbol LS4278 parameters：



  Physical parameters：

   ·Size: scanner: 7.3 inches high x 385m pot inches long x 2.7 inches wide / 18.5 centimeters x 9.7 centimeters long x 6.9 centimeters wide communication seat: 2 inches high x 8.35 inches long x 3.4 inches/did five centimeters x 212 centimeters long x 6 cm wide
   ·Colour: white, black, shallow cash
   ·The voltage (rechargeable battery) : use/external power supply, 5 + / - 10% VDC 620 mA / 70mA, Through using host power cable, 5 + / - 10% VDC 450 mA / 70mA, Using external power supply, 12 + / - 10 % VDC 270 mA / 50mA, Through using host power cables, 12 + / - 10% VDC 230 mA / 50mA
   ·Weight: scanner: ~ 8.4 ounces / 238, Communication seat: ~ 64 ounces / 183 grams

  Performance parameters:

   ·Battery life: each full charge after the scan can count: 32,000 + @ 1 scans/SEC (usually the scanning for less than a day, can be in 1 hour of 4,000 fully charged)
   ·Decoding ability: 1D/PDF417, please refer to the data table, obtain the complete list of supported by symbols
   ·Scanning depth: 0-19 inches (0-48.25 centimeters)
   ·Scanning mode: grating
   ·Support interface: IBM, keyboard simulation, the rs-five 232, Synapse, USB, and interface with model into and become, Refer to the information table, detailed information
   ·Technology: laser scanner

  Use environment：

   ·Working temperature: 32 ° to 122F / 0 ° to 50 ° C
   ·Working temperature: - 40 ° to 158F / - 40 to 70 ° C
   ·Resistance to light in indoor lighting, outdoor natural light and normal (direct sunlight) conditions
   ·Specifications: can sustain multiple fall from 5 feet / 1.5 meters high to cement floor impact
   ·IP43 seal: environment

  Rules and regulations：

   ·Wireless communications: EN300 328
60950 UL electrical safety: -1, 1-60950 C22.2 No. 1-60950, EN, IEC 60950-1
   ·Environmental regulations: follow the RoHS directive 95 / EEC 2002 /
   ·EMC: EN 301 489-1, EN 301 489-17, IEC60601-1-2, EN55022, the FCC part B level, the 15th ICES mamn EN55024, grade B, EN61000-3-2-3-3, EN61000
   ·RF exposure: EN 50360, EN 50361, FCC, complete an OET 'ts 2, RSS102 Bulletin 65
   ·Laser security: EN 60825-1, 1-60825 IEC, 21CFR1040 10
